• Identify key symptoms that indicate the shower cartridge needs replacing, like constant drips, inconsistent temperature, or a stiff handle, and repair it ASAP to avoid water damage and extra costs.

• Plan ahead by locating your valve and cartridge type, collecting tools and replacements, and turning off and draining the water before you get started.

• Use a definite removal and installation order. Remove the handle, expose the valve, pull the old cartridge, insert the new cartridge, and reassemble the trim. Keep parts straight and note orientation.

• Once installed, turn the water back on and test for leaks, proper mixing of temperature, and smooth handle operation. Fix any problems right away.

• Select the right replacement cartridge based on valve compatibility and durability. Opt for OEM for a perfect fit and explore trusted aftermarket options as well. Always stock a backup.

• Keep the valve happy with occasional flushing, lubrication, and seal replacement. Recycle old cartridges appropriately in accordance with local guidelines.

How to replace a shower valve cartridge is a complete, step-by-step guide for removing and installing the internal part that controls the flow and temperature of water.

It details tools, shutting off water, matching and removing the old cartridge, and fitting a new one to prevent leaks and restore function.

The tutorial fits standard residential valves and contains precaution suggestions and fast debugging remarks.

Problem Diagnosis

Bad shower valve cartridges create a tight cluster of reproducible issues. Early detection conserves water, time, and money. Here’s what to look for, how to distinguish cartridge issues from general plumbing problems, when a cartridge swap will solve it, and how to prioritize to prevent water damage or unnecessary service calls.

Leaky Faucet

Constant dripping from your shower’s faucet is usually indicative of a shot cartridge. A drip that continues after you turn off the water can waste hundreds of litres per week and indicates the sealing surfaces in the cartridge are no longer tight.

Look for water pooled around the tub lip or near the handle after bathing. Moisture under the escutcheon plate or white and crusty mineral deposits are indicative of slow leaks. They started small and expanded due to hard water.

Take the cover off and check for corrosion or mineral deposits on the cartridge face. That stuff can stop a full shutoff. If water drips irrespective of handle position, the cartridge is suspect. Other culprits, such as a loose showerhead or busted diverter, tend to drip in a different manner or only out of the spout.

Temperature Issues

Hot/cold swings in the middle of a shower frequently indicate the cartridge’s internal hot/cold mixing parts are going bad. Troubleshooting involves running the shower and gently moving the handle back and forth.

If there is inconsistent delivery or a moment of all cold or all hot water, then you have a stuck or broken cartridge. Bubbles in or extreme temperature variations indicate the mixing spool or seals are worn.

Consider how other fixtures in the house perform. If only the shower is impacted, the valve cartridge is a more likely culprit. An old cartridge can stop reacting to handle movements, resulting in poor or unsafe temperature control.

This is particularly true with everyday use and in hard water regions, where mineral scale hastens the wear.

Stiff Handle

Extra resistance in turning the handle results from cartridge wear or deposits on moving parts. A handle that sticks, grinds, or jiggles is usually indicative of internal damage.

Test by removing the handle and turning the valve stem by hand. If it’s still rough, lubricants or tightening fasteners won’t make it better. Grinding or a handle that won’t return smoothly indicates internal scoring or broken parts.

While most cartridges last for several years, hard daily use and mineral buildups reduce their lifespan. Cartridge replacement is almost always dramatically less expensive than replacing the entire valve body and it returns the smooth operation.

Essential Preparation

Essential prep — before you crack open any work on a shower valve cartridge, know what you’re in for and make a plan. Changing a cartridge needs open access, the right components and water safety awareness. The brief notes below set the stage for the three focused tasks that follow: identifying the valve, gathering tools and shutting off the water.

Identify Valve

Examine the exposed components for manufacturer, model, and/or stamped codes on the escutcheon or valve trim. These markings frequently align with manufacturer guides online. Take a picture of the valve body exposed during installation to compare with diagrams.

About: Crucial preparation. Taking off the handle and escutcheon reveals the valve body and cartridge. Most handles come off with a little set screw or a concealed clip. Wear that screw safe.

Once removed, tug on the cartridge a bit and see what it looks like, whether it has ports, how it’s held in place. For reference, compare the old cartridge to pictures of common types — ceramic-disc, single-piece cartridge assemblies and spool-style cartridges.

Make a list of exact parts: cartridge part number, any retaining clips, O-rings, and the size of screws or hex fittings. If you can’t visually match up the cartridge, take the old piece to a plumbing supply and have them confirm it.

Gather Tools

Collect basic tools first: screwdriver set including Phillips and flathead, hex wrench set, adjustable wrench, and pliers specifically tongue-and-groove or water-pump pliers. A cartridge puller can be a lifesaver when dealing with stuck cartridges, while certain valves necessitate a clip tool or cotter pin remover to free the retainer.

Keep silicone grease on hand for O-rings and seals to make a watertight fit. Set up a small container or magnetic tray to catch screws, clips, and small rings as you’re taking something apart.

Double check that you have a replacement cartridge compatible with your specific valve type, along with any spare O-rings or seals. Double check fittings and size. The wrong cartridge can leak or reverse hot/cold flow, which occasionally is repairable by rotating the cartridge 180 degrees, but it is best avoided with the right part.

Shut Off Water

Find the main water shutoff, or at least the local shutoff to the bathroom, and turn it off. Once you’ve shut off the valve, open the shower control to dissipate pressure and drain residual water from the lines, leaving it open as you work.

Double check that flow has stopped by observing for any steady drip at the valve or opened faucet. Prepare some towels or a shallow bucket below the opening to catch the residual water when you pull out the cartridge.

If you’re unsure about any step, hire a licensed plumber because it is better to be safe than sorry about risking damage or flooding.

Cartridge Replacement

Cartridge replacement will restore proper mixing and prevent drips. Shut off the primary water valve to avoid flow before you begin. Gather tools: screwdriver, Allen wrench set, pliers, cartridge puller (for example, a Posi‑Temp Puller), replacement cartridge marked H/C, and a clean cloth.

Work on a flat surface and maintain a small tray for screws and parts.

1. Remove Handle

Unscrew the handle fastener with the appropriate tool and pull the handle directly off. Take off any fancy cap first, as some pop off and others conceal a set screw. Remember which way the handle pointed and how the adapter sat on the stem for reassembly.

Place the handle, adapter, and screws in a marked tray to not lose them.

2. Expose Valve

Remove the escutcheon plate and chrome sleeve by loosening the trim screws or retaining ring. Carefully pull the plate and collar free. Don’t lever against tile edges or you’ll chip them.

Scrape off any mineral buildup or debris from the exposed valve face and check for corrosion. If you notice loose mortar or damaged backing, patch repairs prior to proceeding.

3. Extract Cartridge

Identify any retaining clip or cotter pin retaining the cartridge. Use needle-nose pliers to take off the clip. If it is being stubborn, go slow so you do not bend it.

Simply insert a cartridge puller such as a Posi-Temp Puller into the socket and pull the cartridge directly out. Pliers can do the job but may cause damage. Anticipate a little water to jump out of the orifice, snare it with your towel and peruse the socket for gunk.

Check your old cartridge for cracks, worn O-rings, or mineral buildup and lay it alongside the new one to verify fit and orientation.

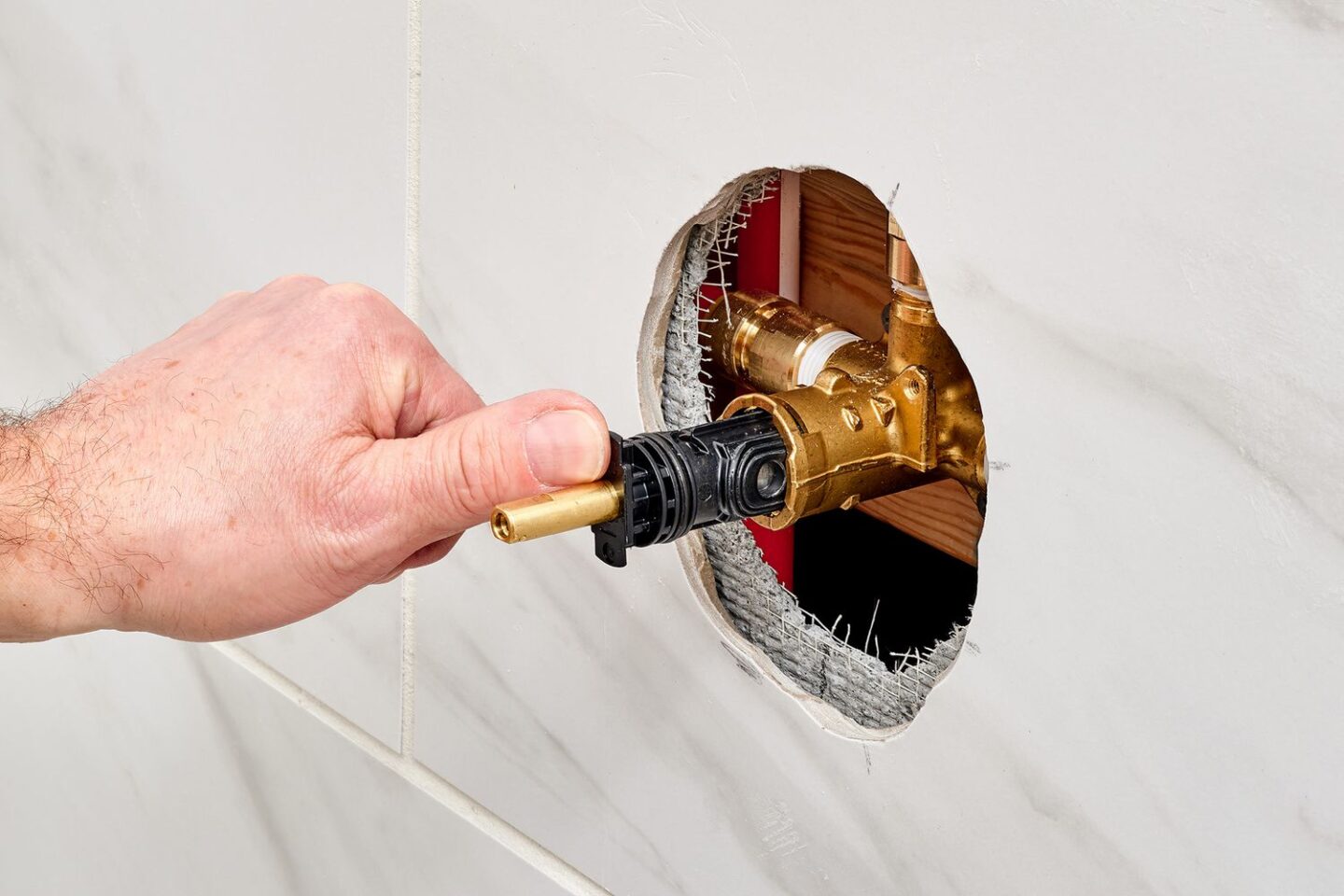

4. Install New

Position the new cartridge with the H/C label facing the appropriate sides and line up the tabs with the slots on the valve body. Push the cartridge all the way in until it seats. You may have to twist slightly to make it align.

Pry the retaining clip out carefully and reinstall it all the way. If the clip is not fully seated, the collar will not slide back on. Ensure all O-rings and seals lie flat and are not being pinched.

Manually move the cartridge through its range to verify smooth operation before closing up.

5. Reassemble Trim

Now replace the collar, handle adapter, and handle in reverse order, tightening screws evenly for a snug fit. Slide the escutcheon and chrome sleeve back over the valve and tighten any trim screws or rings.

Clean any trim fingerprints and do a quick water test once the main valve is turned back on for leaks and proper hot and cold orientation.

Post-Installation Checks

After swapping out a shower valve cartridge, run a targeted checklist before you wrap up. These checks verify that the cartridge sits properly, seals are intact, and the valve functions within temperature and pressure ranges.

Proceed methodically: turn the water back on, inspect for leaks, test the handle and temperature control, then complete a brief checklist to close the job.

Test for Leaks

Check the escutcheon, handle base and exposed plumbing for seepage. Once you restore the water pressure, keep an eye on these sections for a few minutes. Small slow leaks often reveal themselves only after the pressure stabilizes.

Test the shower on low pressure before you run it at full pressure because leaks that don’t manifest at low flow can appear under valve load. Touch around the chrome sleeve and the cartridge cover for moisture, with a dry paper towel to help identify thin layers of water.

Verify behind the escutcheon if you can, taking it off for a moment if you suspect leak paths. Construction debris left in the valve body can keep the cartridge from seating and cause leaks that will ruin a new cartridge in weeks, so recheck for debris if you find persistent seepage.

If you do find a leak, tighten connections a little at a time and reseat the cartridge if necessary. Little drips at the handle base are more likely to be caused by a twisted or displaced O-ring or an offset escutcheon seal, so check these first before you dig any deeper.

Check Temperature

Turn the handle through its entire hot-to-cold range to verify proper mixing of the waters. Make sure that temperature changes correspond appropriately to handle position and that hot water comes out when the handle is pointing to the hot side.

If they feel backwards or wrong, the cartridge is almost certainly rotated 180 degrees and will need reorientation so the hot marking faces the hot supply as you noted during installation.

Check for lag or temperature fluctuation when switching quickly between settings. Delays can indicate trapped air, scale in the valve, or a seating issue. Light mineral deposits are easy to remove with some occasional vinegar soaks before they damage seals.

Heavy scale needs scraping. Enter your temperature checks and record notes about any oddities for reference against previous performance.

Handle Operation

Turn the handle on and off to see if it moves smoothly and returns to neutral. Hearing a grinding or clicking might mean a misaligned cartridge or debris trapped between moving parts. Make sure the handle doesn’t stick anywhere.

A little resistance usually indicates a burr, an over-tightened retaining nut, or an ill-sized cartridge. Make sure that the handle movement is the same for everyone and that the full range is available without any binding.

A properly executed cartridge replacement should require 30 to 60 minutes. Use that window to see the system operating in a normal usage pattern and perform a last-minute checklist.

Cartridge Selection

Selecting the right replacement cartridge begins with identifying the valve brand, series, and cartridge type. Compare the stamped or printed model number on the valve body or trim to your manufacturer’s parts diagram. If the markings have worn off, pull the old cartridge and bring it into a plumbing supply store for a visual comparison.

Wrong selection typically results in a second trip, additional effort, and even safety hazards such as scalding or temperature fluctuations.

OEM vs. Aftermarket

Original equipment manufacturer (OEM) cartridges typically offer a precise fit and known performance. They minimize leak potential and eliminate fitment surprises while reinstalling trim and handles. OEM parts usually come with transparent paperwork and a warranty attached to the valve as well.

Aftermarket cartridges can be cheaper and more accessible, and a lot fit multiple brands. Cross-reference charts and review or test report durability. Certain aftermarket units add features such as universal adapters, but they might need minor trim modifications.

Make your choice balancing long-term reliability and upfront cost. If the valve is a specialty or older model, OEM is safer. For ordinary valves, a good aftermarket brand is fine.

Valve Types

Single-handle, dual-handle and thermostatic valves are the most typical. Pressure-balancing cartridges, which have been mandated by many codes in the U.S. Since 1992, are common in single-handle shower valves.

Valve design impacts both how you mount the cartridge and what tools are required. Thermostatic valves usually need exact calibration post install. Pressure-balancing cartridges contain springs and pistons inside; they need to be installed the right way up.

Determine if your valve employs retaining clips, screws, or a bonnet nut. Each of these alters removal and seating procedures.

My Recommendation

Select OEM cartridges for best fit and predictable performance in the majority of instances. Have a backup cartridge available if your shower sees multiple users or downtime is expensive.

Replacements generally require 30 to 60 minutes when components are compatible. Choose cartridges that include an installation guide and required hardware. That makes the task easier and less prone to mistakes.

Reliable cartridge suppliers are the major valve makers and good aftermarket firms. Cross-reference part numbers prior to purchase and verify local code requirements.

Long-Term Care

Long-term care of a shower valve cartridge consists of basic inspections and minor interventions that avoid expensive malfunctions down the line. Periodic care of the valve, trim, and adjacent plumbing maintains flow and minimizes potential leaks. If you maintain a record of the cartridge model, installation date, and parts replaced, future repairs are faster and the right parts are ordered.

Maintenance Tips

Flush the valve once a year to clear away sediment and grit. Turn off the water, take out the cartridge according to the manufacturer’s directions, and flush fresh water through the valve body for a few minutes to clear away sediments. In ceramic-disc and cartridge-style valves, this prevents scoring and leaky seals.

If the handle is stiff or gritty, grease the moving parts with plumber-approved silicone grease. Remove the handle and trim, inspect the stem and splines, and brush clean first. Grease once dry. NEVER use household oils, as they eat rubber seals.

Don’t wait – replace O-rings and seals at the first sign of cracking or hardening. Keep a little kit of common O-ring sizes and a spare cartridge if it’s a common valve model in your area. Replace seals individually and test for leaks before putting the trim back on. It’s cheaper and faster than waiting for a total cartridge meltdown.

Check the cartridge and surrounding hardware twice a year. Search for corrosion, mineral deposits, or pinhole leaks near couplings and the escutcheon plate. Examine the handle fit and the temperature control range to detect internal wear. If you notice warping or re-leaking after seal replacement, schedule a complete cartridge replacement.

Proper Disposal

Old cartridges have mixed materials. Separate out metal, plastic and rubber pieces when you can. Metal components might be embraced by scrap yards, while plastics and rubber tend to find solace in the landfill or specialized recycling efforts.

Check with your local waste authority for regulations. They differ by region and can impact how parts need to be disposed of. Never sink cartridge parts down drains. Small pieces and rubber bits clog and destroy municipal systems.

Save spent cartridges in a marked box until testing appointments or recycling drop-offs are scheduled. Some manufacturers take them back for recycling. See warranty paperwork or the company site.

Conclusion

You now have a no-hassle roadmap to replace a shower valve cartridge. Turn off the water. Prepare with the proper tools and the correct cartridge type. Be careful in the tear-down and match parts visually. Then seat the new cartridge straight and tighten to the manufacturer’s specifications. Turn on the water, check for leaks, and adjust the handle for ease of motion and complete shutoff.

Little inspections repay. Try hot and cold at low and high flow. Refit any loose connectors. Scrub the valve and record the cartridge type for reference. If a leak or strange sound appears, cease and contact a plumber.

Experiment with a straightforward, single-handle faucet initially. If you want assistance, request a parts list or a local repair tip.

Frequently Asked Questions

How do I know if the cartridge is the problem?

Whether you’ve got leaking, diminished flow, or no hot or cold control, the cartridge is usually to blame. First, turn off the water and test by removing the handle. Visible wear, mineral deposits, or broken pieces indicate that the cartridge requires replacement.

Can I replace the cartridge without shutting off the main water?

First, close the water to the shower or to the home. Working without turning off the water can flood your bathroom, cause injury, and damage the valve and cartridge.

How do I find the right replacement cartridge?

Verify the valve brand and model stamped on the trim or valve body. Bring your old cartridge to a plumbing store or compare it to manufacturer guides. Photos and part numbers make it easy to find the right one.

Do I need special tools to replace a cartridge?

You need basic tools: an adjustable wrench, Allen keys or a screwdriver, a cartridge puller (sometimes), and cleaning supplies. Cartridge pullers ease removing stuck units, though they are not always necessary.

How long does it take to replace a shower valve cartridge?

The majority of replacements can be completed in 30 to 90 minutes. Time depends on access, rust, and trim removal or puller use. Factor in additional time for troubleshooting and cleanup.

Will replacing the cartridge fix temperature fluctuation?

Certainly if the cartridge is worn or clogged. Replacing it usually returns steady temperature control. If problems continue, inspect thermostatic elements or supply pressure problems.

How can I prevent future cartridge problems?

Flush lines following big work. Use a sediment filter and clean minerals frequently. Employ a mild cleaning regimen to preserve cartridge life and resist the urge to use harsh chemicals that can eat at seals.
