Key Takeaways

• A water pressure booster system increases the water pressure within a plumbing system. This guarantees better water circulation and stable pressure for multiple uses.

• These systems are essential in addressing areas with low water pressure. They solve issues due to plumbing breakdowns, city supply constraints, and issues with elevation or distance.

• Essential elements like pumps, tanks and pressure switches work together to provide constant water pressure and flow. Features such as variable speed control increase efficiency and improve safety.

• Installing a booster system can enhance household comfort by supporting high-demand applications, improving appliance performance, and ensuring reliable water pressure during peak usage times.

• Selecting the right booster system requires assessing water pressure needs, evaluating features like energy efficiency and noise levels, and accurately sizing the system to match demand.

• Proper installation and regular maintenance are key to long-term operation. Regularly testing pressure levels and adhering to manufacturer guidelines can avoid water pressure problems in the future.

They prevent issues of intermittent service and water shortages by providing reliable and consistent water flow in both residential and commercial settings. They’re a great way to increase water pressure. They’re an ideal solution for residential properties experiencing low-pressure conditions and commercial structures with multiple stories.

Components of a typical booster system include a pump, pressure tank, and controls that combine to automatically deliver consistent, reliable pressure. By providing just the optimal amount of water flow, these systems can enhance daily activities such as showering, dishwashing, or running an irrigation system.

Choosing a system involves considerations like household demand, pipe diameter, and existing levels of water pressure. With an effective and efficient water pressure booster system in place, your comfort will be significantly increased. This increases water efficiency for everything you require.

What Is a Water Pressure Booster System

Definition and Purpose

A water pressure booster system is any system used to increase water pressure within a given plumbing system. It does this by increasing the pressure at which water flows through the pipes, guaranteeing a consistent and sufficient flow. These systems are essential for addressing inadequate water pressure.

They do a great job addressing problems in high rise buildings and places with irregular city water sources. For instance, in vertical mixed-use, gravity can cut water pressure to almost nothing on the higher floors of tall buildings. Municipal water systems can normally deliver sufficient pressure to service up to about four floors high, with anything taller depending on booster systems.

These systems improve the efficiency of water delivery, doing wonders to make daily activities like showering and running appliances much more efficient. Their efficiency makes them a necessity to homes and businesses alike.

Beyond municipal needs, booster systems are essential in irrigation, private well, and industrial use cases. You can customize them to achieve precise pressure and flow needs. This guarantees sustained performance in varying operating conditions, while maximizing water delivery.

Key Components and Features

Water pressure booster systems usually include five primary components. Pumps are the heart of the system, powering the movement of water, and the tanks hold that water pressurized for on-demand use. Pressure switches automatically control system operation, keeping pressure levels constant and at the right level.

Other features including pressure relief valves add safety benefits by avoiding over-pressurization. Premium components like stainless steel or brass increase the durability and reliability, making them ideal for the most critical of environments. Today’s systems have these advanced smart technologies, including variable speed controls with self-learning technologies.

These innovations can reduce energy use by 10-15%, even while making the systems more efficient and cost-effective. Safety is the other big piece. Over-pressurization prevention mechanisms help to protect both plumbing and end-users, while promoting long-lasting and efficient operation.

For example, we can make internal plumbing systems in vertical buildings to provide enough pressure from top to bottom. This all-in-one strategy provides tailor-made solutions to address unique requirements. These systems fit perfectly into any environment.

Whether you’re a residential customer with a deep well home, or a commercial operation that requires reliable pressure, they’re the water distribution solution you’ve been looking for.

Why Water Pressure Booster Systems Are Important

Enhancing Water Flow in Homes

Water pressure booster systems, such as the perfect water booster pump, virtually double water flow rates across your entire home, providing reliable performance for all your daily activities. A good example is how a booster system makes even the faintest shower streams a constant, powerful flow—getting ready in the morning becomes much more enjoyable.

Just like showers, faucets feel great with more pressure, making tasks like rinsing dishes or filling pots faster and easier. This increased pressure can be felt through your household chores as well, with laundry and cleaning becoming easier thanks to powerful water booster systems.

Washing machines operate best when water pressure is stable, shortening wash cycles and yielding better cleaning results. Picture washing your car, watering your lawn, or enjoying your new home during prime hours without interruptions. This is where water pressure boosters come into play, delivering the convenience of being able to run several fixtures simultaneously even during peak demand times.

Supporting High-Demand Applications

High-demand situations, such as having guests over or the simultaneous use of multiple showers and a washing machine, frequently put water supply under pressure. Booster systems remedy these scenarios by ensuring consistent pressure at every outlet.

In other words, for increased demand situations like gatherings, they let several users shower, clean, and cook simultaneously without drops in pressure or flow. For commercial applications such as hotels or gyms, where water demand is highest at peak times, booster systems easily adjust to the demand.

Variable Speed Drive (VSD) pumps, such as those operated by the District, respond to the dynamic pressure requirements, maintaining efficiency at all times. These systems serve our skyscrapers, ensuring water gets to the top floors of tall buildings consistently. Their flexibility makes them perfect for households depending on private wells, delivering daily needs with minimal hassle.

Addressing Low Water Pressure Challenges

Weak showers, nonstop tub fills and appliances that don’t work properly due to low water pressure can make life difficult. Booster systems remedy this by increasing the pressure, bringing power back to every corner of your home.

For private well owners, these are critical, especially when combined with storage tanks sufficient to meet daily usage demands. The long-term benefits of installing a booster system go beyond solving pressure problems as they arise and improving the overall health of your plumbing.

More even pressure means less stress on fixtures and pipes, which increases their longevity. Whether in home or manufacturing facilities, solving water pressure concerns leads to happier customers and an optimized water system.

Common Causes of Low Water Pressure

Plumbing System Issues

Unfortunately, low water pressure usually begins with issues within your home’s plumbing system. Corroded pipes, for instance, can constrict the area through which water flows, lowering pressure. If you live in an older home with galvanized steel pipes, you’re more likely to run into this problem.

Installing new copper or PEX piping not only returns the home to consistent water pressure but avoids the risk of future leaks. Clogs due to mineral deposits, damaged fixtures, or even leaks you can’t see reduce the amount of water that can get through.

While you may be tempted to use solutions such as CLR to eat away at scale, these products can actually damage your pipes in the long run. Hydrojetting provides a faster, safer, more effective method of clearing out mineral deposits and debris.

The answer lies in regular maintenance, like keeping an eye out for leaks or old fixtures. A professional plumber will be able to identify problems before they start and ensure that pipes are laid correctly to prevent pressure loss down the line.

Common causes include a faulty faucet installation that can result in uneven flow and dripping, which can create consistent low pressure.

Municipal Supply Limitations

Sometimes, the problem isn’t inside your house at all, but rather with your city’s water infrastructure. Public water systems may have pressure drops at times of high demand, such as in the morning when everyone is showering.

Infrastructure age matters, too. Age of pipes under the control of the water utility can be an issue. Planned maintenance, such as the occasional temporary shutdown of a water main, can cause temporary drops in pressure.

This is why homeowners should always check with their local water utility first to rule out external causes such as a water main break. Pressure is affected by local policy, which may restrict the maximum amount of water utilities are allowed to provide.

For homes experiencing chronic low supply, a water pressure booster system, such as a pump and tank system, can provide adequate water pressure. These systems function superbly to conquer municipal constraints by improving the flow of clean water directly to your residence.

Elevation and Distance Factors

Elevation and distance from the water source greatly influence water pressure. Homes built on hills or in mountainous areas often experience weaker water flow since water must be pushed uphill, which requires more energy and pressure.

It makes sense that the farther away you are from the main water line, the lower your pressure levels will be. Long plumbing runs, such as those in sprawling estates, lower pressure through friction inside the pipes.

In these situations, booster systems are sometimes required. A single-stage pump with one impeller can effectively meet mid-range pressure requirements.

Homes with extreme elevation challenges can see a huge advantage from a multi-stage pump. This kind of pump creates more pressure through multiple stages with more than one impeller.

By understanding these factors you can be better prepared to choose the solution that’s most appropriate for your needs. For instance, homes at the base of a hill might need to do less work than houses on a pronounced slant.

How Water Pressure Booster Systems Work

Mechanism of Operation

Water pressure booster systems pull water from a source, such as a municipal supply line or a well. The system automatically applies a booster pump to boost water pressure. Once installed, the pump boosts water pressure, allowing water to flow easily to faucets, showers, and other pipes throughout a structure.

This is accomplished by having the pump’s motor turn on automatically whenever water pressure decreases or water demand increases. This activation is usually initiated by smart sensors constantly checking the pressure needed in real-time to guarantee optimum performance.

Pressure sensors are critical in determining how the system should function, and in making those adjustments. They maximize efficiency by avoiding over-pressurization and keeping water flow consistent.

Besides eliminating the need to host a second booster on-site, modern systems—particularly those that employ Variable Speed Drive (VSD) pumps—are more efficient. VSD pumps dynamically increase or decrease motor speed according to demand, using less energy while still serving various pressure needs.

For example, a VSD pump can intelligently maintain pressure for high-rises, automatically adjusting to demand fluctuations with remarkable precision.

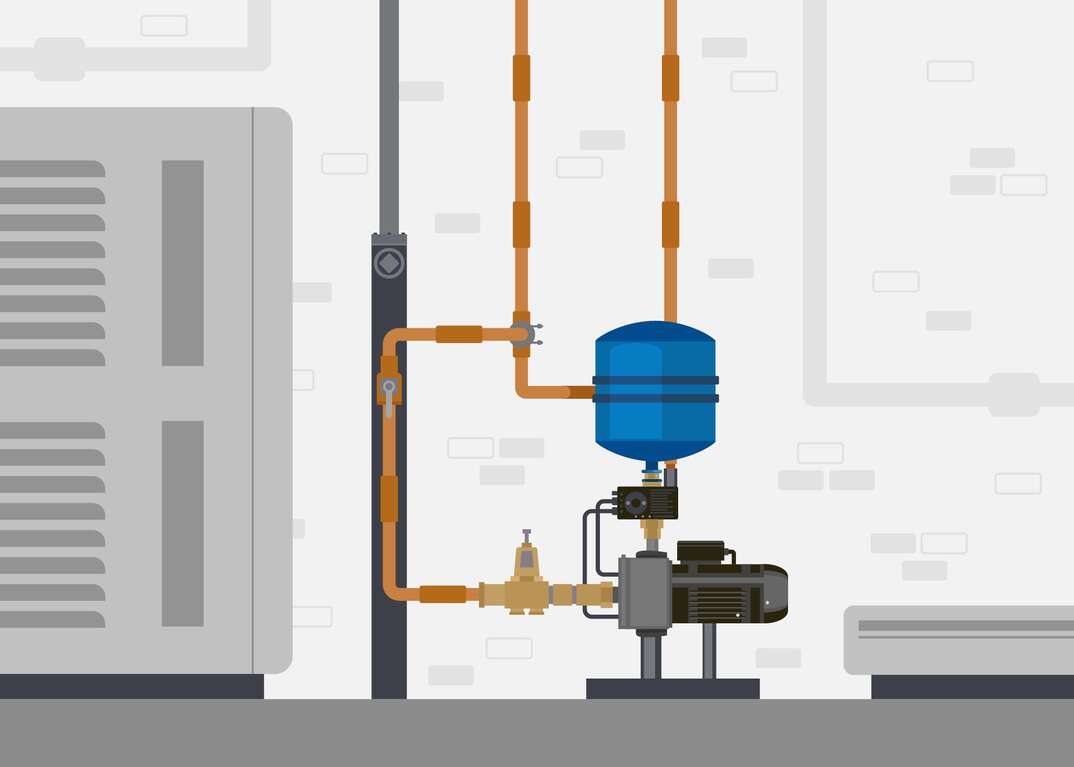

Role of Pumps and Tanks

Pumps and tanks are the heart and soul of these systems. The most common pump types are centrifugal pumps, which are popular due to their simplicity and reliability, and submersible pumps, which work underwater.

For instance, the Grundfos Scala1 3-45-1 is a highly-compact, self-priming centrifugal pump ideal for any residential application. The Davey BT30-30 is a super quiet pump, making it a great choice for medium-sized homes. It can supply as much as 30 gallons per minute, raising pressure by as much as 50 lbs/sq in.

While pumps are important, storage tanks play a key role in stabilizing pressure, particularly at times of peak usage. These tanks are essentially giant wells that store pressurized water.

This design prevents the pump from having to turn on as much, preventing wear and deterioration, and prolonging the system’s lifespan. Tanks help deliver a constant flow of water even when there’s a demand spike.

A water pressure booster system pump/tank combination must be carefully selected. For instance, a multi-story home might require a high-capacity pump paired with a large storage tank to meet its needs effectively.

Benefits of Using a Water Pressure Booster System

Improved Water Flow Efficiency

Water pressure booster systems increase your water flow rates, so you can get water faster and more easily wherever you need it in your home or commercial property. For instance, filling a bathtub or sink will be much quicker, cutting down on wait times during hectic mornings.

Even outdoor irrigation systems enjoy the benefits of better flow, creating a more efficient way to water a garden or lawn. These systems increase the performance of appliances like dishwashers and washing machines.

This is because they make sure that there’s enough pressure for everything to work correctly. Booster systems provide the appropriate flow rate to all fixtures, even in demanding situations such as high-rise buildings or buildings served by a private well. They can boost water pressure by as much as 60 PSI.

Enhanced User Comfort and Convenience

Reliable water pressure makes the difference between severe inconvenience and comfortable daily life. Uniform, powerful water flow transforms showers and baths, making your morning or evening routine more satisfying and refreshing.

With reliable pressure, you won’t be left frustrated while washing dishes or running a laundry load. When you know your household water pressure can handle the demand, you can rest assured—even during times when usage is at a peak.

Versatility for Various Applications

Water pressure booster systems are configurable for home, business, or farm. They overcome gravity and distance obstacles, guaranteeing high-pressure flow on every floor—even the 40th floor of tall towers.

Booster systems easily work with storage tanks for private wells. They’re compatible with different water treatment solutions, giving you the flexibility to find the perfect solution to your unique needs.

They work quietly at only 47 decibels. Additionally, they can be controlled remotely with apps such as Grundfos GO, making them ideal for use in residential, commercial, and industrial settings.

1. How to Select the Right Booster System

Assess Your Water Pressure Needs

Knowing exactly what water pressure your home needs is an important first step. To begin, calculate how many fixtures—faucets, showers, appliances—are operating at peak times. A home with several bathrooms and a high-volume kitchen may experience significant pressure losses.

This occurs during peak demands, like when multiple fixtures are being used simultaneously. Determining your existing water pressure with a pressure gauge is just as critical. This gives you a baseline to see if you need a booster system at all.

Consider lifestyle factors such as a desire for gardening, filling a new pool, or regular houseguests, as these uses can up your water needs. Align operational diversity with industry standards such as CIBSE. This method allows for different systems to operate side by side to best serve your needs and future.

Evaluate System Features and Specifications

As you consider which booster system is right for you, pay attention to features that best meet your water use requirements and improve performance.

Variable speed options maintain stable pressure and lower energy consumption, making them suitable for both residential and commercial installations. These systems can reduce energy expenses by 50% or more than older systems. They achieve this by providing service only when needed.

Included pressure relief valves are a crucial component to prevent the system from becoming over-pressurized, protecting the system’s longevity and safety. The capacity and size of the pump must match your water flow rate, desired pressure, and pipe size.

For example, a larger home might need a booster system to help deliver more gallons per minute (GPM). Warranty and factory support guarantee ultimate dependability. Dutypoint’s WRAS-approved systems provide cost-effective, custom solutions for your specific requirements, from space constraints to high flow demands.

Consider Energy Efficiency and Noise Levels

Energy efficiency is a major attraction for cost-conscious users and is a focus. Variable speed pumps do a fantastic job here, as they immediately start using energy more efficiently and only use the energy that’s needed to keep costs down over time.

When it comes to selecting a system for residential areas, noise levels are equally important. Choose designs that include noise mitigation techniques such as sound insulation or vibration dampening to reduce operational noise.

In a quieter model, for instance, some or all of the encased motors have rubber mounts to absorb the vibes. Solutions such as Dutypoint’s cold water boosters shine for projects that need to operate quietly, serve a variety of different projects, and function without interrupting everyday life.

2. How to Size a Booster System

1. Determine Flow Rate Requirements

Sizing a water pressure booster system starts with determining the overall flow rate required. This means totaling the flow rate of every fixture that could be in use at the same time. For reference, a typical showerhead consumes approximately 2.5 gallons per minute (GPM).

For comparison, faucets are typically 1.5 to 2.2 GPM. In larger households, it’s the norm to have several fixtures in use at once. It’s important to take this duplication into account.

For instance, if you’re running two showers and a washing machine you may need a flow rate of around 7 GPM to cover all the demand. The flow rate has a direct impact on the pump size, as increased flow demands warrant larger systems.

This important step helps you determine whether your booster system can accommodate the water volume required for optimal operation, even during peak demand.

2. Calculate Pressure Boost Needed

The next step is determining the amount of pressure boost needed. First, determine what the incoming water pressure is. For municipal water supplies, it’s typically in the range of 65 to 85 PSI.

If your target output pressure is 80 PSI but you are starting at 50 PSI, to achieve that objective, you would have to increase the pressure by 30 PSI. Aspects including changes in elevation and run distance through the piping can impact the total pressure as well.

For example, if water needs to be pumped uphill, gravity will pull it down and it will lose pressure, needing an extra boost. To convert the pressure to a dynamic head, use the equation: Pressure in PSI x 2.31 = feet of TDH.

This value is key for proper sizing. TDH includes vertical rise along with pipe friction loss, providing a full selection picture of system requirements.

3. Match System Capacity to Demand

Lastly, size the booster system’s capacity to your household’s peak demand. Residential systems tend to be less problematic at 30-40 GPM, plenty for the typical average residential application.

Oversizing a system is an expensive mistake that wastes energy and money, and undersizing it will result in lackluster performance. Think about peak periods, such as mornings when showers, dishwashers, and laundry could all be operating at the same time.

A system that delivers at least 20 PSI will maintain adequate pressure for every fixture in the building. Moving forward, make room for expansion, whether it’s more bathrooms or even bigger things like more appliances.

For instance, if you’re undergoing a major remodel or expansion, select a system with a little extra capacity to prevent needing to upgrade in the future. Properly matching capacity with demand creates a system that is both efficient and reliable in everyday use.

3. How to Install a Booster System

1. Prepare the Installation Area

Selecting the appropriate site for your booster system is extremely important. It needs to be close to your water supply lines and electrical outlets to reduce headaches during installation. For instance, if you are drawing water from a private well, you would likely need a storage tank installed close to the well to collect water.

Protect the work area from excessive heat, cold, and weather elements. Lack of ventilation will cause the device to overheat, and exposure to rain or snow will damage the sensitive components. Remove any barriers to provide safe, convenient access both during and after installation.

This step makes future maintenance easier and minimizes the potential for an interruption to the system.

2. Follow Manufacturer Guidelines

Following manufacturer instructions isn’t a recommended best practice—it’s a requirement for you to have a properly functioning system. Following these best practices safeguards your investment by keeping warranty coverage intact.

For example, installing a check valve will keep water from flowing back through the booster system, which is important for maintaining pressure at all times. Don’t cut corners, like improperly sizing piping or not locating the pump the right distance from the water source.

Should something go wrong, manuals offer troubleshooting guidance, like how to spot a bad pressure regulator or a water meter valve.

3. Test and Adjust the System

Following installation, post-installation testing by the contractor verifies that the system is functioning as intended. Determine system needs by measuring your incoming water pressure and flow rates to make sure they’re sufficient for your household or facility’s requirements.

If further adjustments are necessary, make fine pressure adjustments for optimal operation. Most of today’s pumps, including the Davey pump, have integrated sensing devices. These keep a constant pressure and prevent water hammer.

Periodic testing following installation is just as important to ensure reliability over time. This allows for early detection of wear-and-tear or pressure irregularities to keep your system running well for years to come.

Maintenance Tips for Booster Systems

Proper upkeep of a water booster pump system will ensure it operates smoothly and lasts for years to come. Below is a detailed guide to help you maintain your home water booster pump in top condition.

• Schedule a routine inspection to identify a safe timeline for component wear and tear.

• Clean filters and tanks on a regular basis to avoid clogging and ensure consistent operation.

• Watch system performance, looking for indications of not typical pressure fluctuations.

• Plan professional servicing for complex issues or seasonal adjustments.

Regular Inspection and Cleaning

Checking for leaks should be the first step in routine maintenance. Leaks can drastically affect performance and cause bigger problems down the road if left unchecked. By inspecting components regularly, you’ll be able to detect wear, like abnormal sounds or physical damage.

Cleaning filters and tanks is just as important, as clogs can put added stress on the pump. Keeping the system clean avoids catastrophes and enhances efficiency. It prolongs the effective life, saving you from expensive repair projects.

Monitoring System Performance

Pressure gauges and flow meters are your best friends when it comes to understanding system performance. By routinely reading these gauges, you can spot issues early, such as fluctuations in pressure or a drop in flow rate.

For instance, a sudden pressure drop could be a sign of a blockage or pump failure. Regularly tracking these readings helps you catch changes in performance and prevent small issues from developing into serious disasters.

Professional Servicing When Needed

Routine maintenance is something you can typically handle in-house. For more complicated tasks such as pump replacements or electrical troubleshooting, you’ll have to bring in a professional.

Experienced technicians come equipped with the experience and skill to overcome whatever adversity is faced. Continuing professional maintenance improves your system’s performance. With the right maintenance, many pumps can last 15 to 20 years!

Conclusion

Water pressure booster systems help ensure a constant, dependable water pressure supply to your residential or commercial property. They address the issue of low pressure and enhance everyday quality of life. Are you taking a shower or two, filling a big tub, and running some appliances? Whatever the need, the right booster system makes sure the pressure is on!

Selecting a water pressure booster system starts with understanding your needs, including pipe sizes, and anticipating future usage. Proper installation and regular maintenance help ensure it runs at peak efficiency and maximizes its overall lifespan.

Increased water pressure is more than a convenience. It’s not just about saving dollars; it’s about saving quality of life and time. If you’re tired of watering with a trickle, take a look at which water pressure booster system is right for your configuration and get started today. Visit us now and experience the difference for yourself.

Frequently Asked Questions

What is a water pressure booster system?

A water pressure booster system ensures a consistent, powerful flow of water where needed, effectively addressing low municipal water pressure issues.

Why is my water pressure low?

These issues can arise from clogged pipes, leaks, or problems with the municipal water supply, especially during periods of high water demand or when residential booster pumps are not properly sized.

How does a water pressure booster system work?

A water pressure booster system, which includes a water booster pump and a pressure tank, effectively addresses low water flow issues. The booster pump increases water pressure while the tank maintains pressurized water, ensuring a constant rate delivery for various home water fixtures.

What are the benefits of using a water pressure booster system?

A water pressure booster pump system ensures adequate water flow for showers, appliances, and irrigation. It creates energy and water savings, increases user comfort, and stops annoyance due to low water pressure.

How do I choose the right water pressure booster system?

Consider your home’s water usage and the diameter of your pipes, along with the current water pressure. Always consult individual product specifications for water booster pumps to ensure they meet your requirements. If uncertain, seek advice from an experienced professional.

Do water pressure booster systems require maintenance?

We’re discussing the importance of regular maintenance for water booster pump systems. Checking for leaks, cleaning filters, and inspecting the pump will ensure the home water booster pump functions effectively for years to come.

Can I install a water pressure booster system myself?

It is doable, but we suggest hiring a qualified expert to install the right water booster pump. Having a professional handle the sizing, placement, and connection of the water booster pump systems will help avoid future issues and keep the system working effectively.
