• A zone control board is the brains of a zoned HVAC system and manages thermostat signals, dampers, and HVAC equipment to provide customized heating and cooling for each zone.

• The board accepts thermostat calls, controls motorized dampers, and sequences priorities of its zones to avoid short cycling and promote efficient operation.

• Key components are the zone panel, dedicated transformer, relays, terminal blocks, compatible dampers, and sensors. Using the correct parts and wiring is critical for consistent operation.

• Correct installation and maintenance stops frequent problems such as stuck dampers or board faults. Have a professional check ductwork and transformer capacity.

• Zoning can increase comfort and even cut energy consumption by conditioning exclusively occupied spaces. Consider upfront costs and whether it will work with your current system versus long-term savings.

• When possible, select modular, future-ready systems, employ programmable or smart thermostats, and follow sensor data and user feedback to fine-tune performance and maximize equipment lifespan.

What is a zone control board HVAC?

It connects thermostats, dampers, and the central HVAC equipment to deliver heat or cool air on demand. The board adds comfort and can save energy by operating only the zones of your system.

Models differ in zone count and wiring type, and installation often requires some basic electrical and HVAC experience for dependable functioning.

The Control Hub

Something known as the control hub or central control panel is the secret sauce that makes a zoned HVAC system tick. It orchestrates airflow and system behavior between multiple zones, listens to individual thermostats, and deploys motorized dampers in the ductwork to deliver heat or cool air only where necessary.

1. Core Function

The zone control board receives a call from a thermostat and translates that call into action. It reads the thermostat input, determines which zone requires heat or cool, then actuates the appropriate damper motors and instructs the furnace, air handler, or outdoor unit to operate.

Motorized dampers open and close sequentially so conditioned air moves only to the desired rooms or floors. For instance, if the upstairs thermostat demands cooling and the downstairs thermostat is nice and happy, dampers to upstairs open and others close, keeping upstairs cooler without overworking the system.

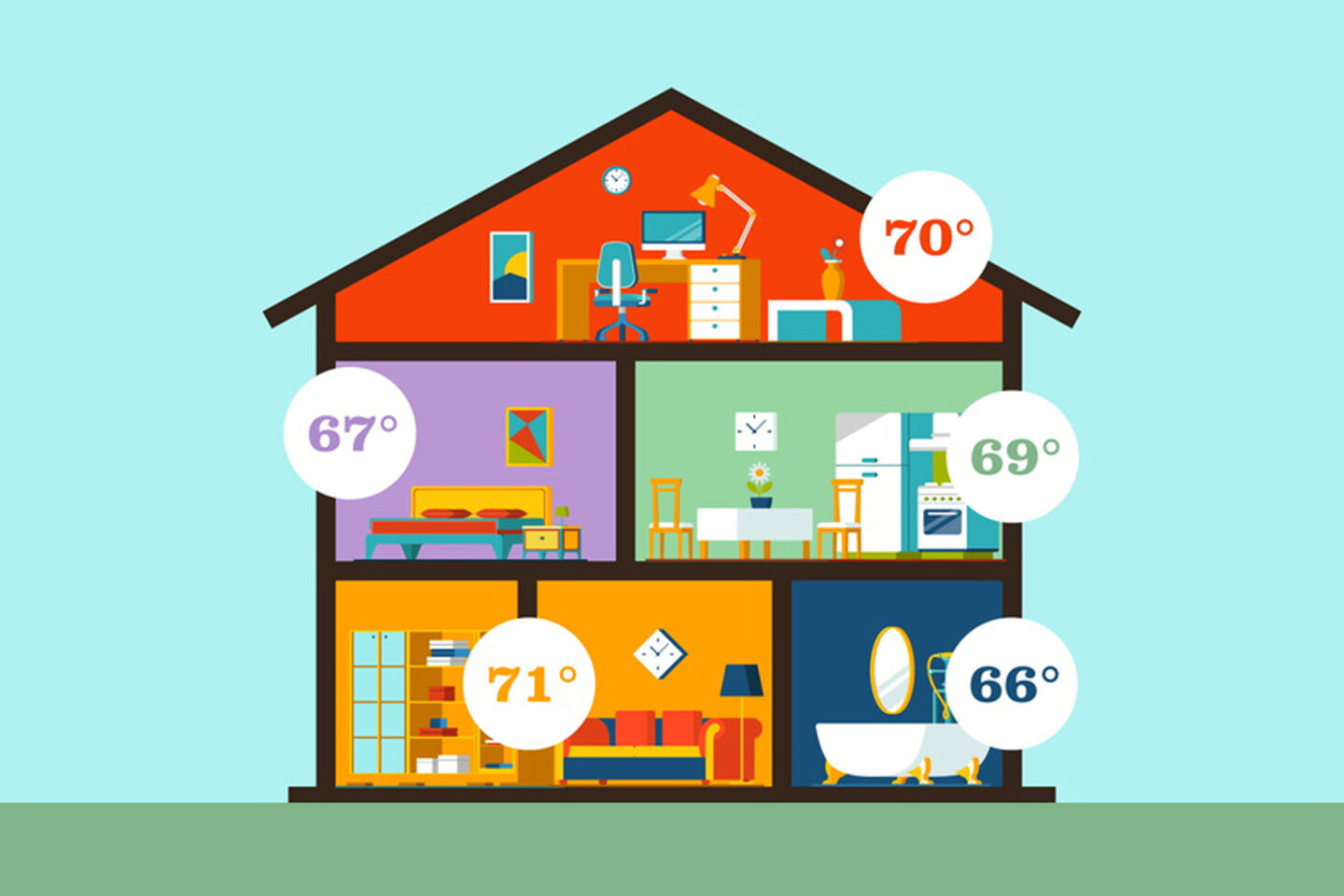

Because it directs air based on demand, the board allows various rooms to maintain disparate set points. That stops battles for one temperature when one zone is warm and another is cool. It decreases unnecessary conditioning of vacant spaces, which is equipment-friendly and energy-efficient.

2. Key Components

The centerpiece is the zone panel itself, which includes its own dedicated transformer to provide stable low-voltage power, relays to switch circuits, terminal blocks for neat wiring, indicator lights for status, and control wiring to each thermostat and damper.

Dampers and zone thermostats should be compatible with the panel’s specifications. Incorrect types or improper sizing results in suboptimal control. A lot of them throw in sensors, like humidity or additional temperature probes, for more granular control. Certain panels provide a manual override or a remote control, allowing a user to force a zone on or off without altering the thermostat.

3. Communication Flow

The board sits between thermostats, dampers, and the HVAC controller. It handles zone calls and prioritizes if multiple zones call at once. It delivers targeted airflow so just the necessary areas receive conditioned air.

Wiring and protocols need to align with the system. Simple low-voltage wiring is compatible with a number of panels, whereas some accommodate smart thermostat communication. With a smart thermostat, the board still executes the same c.t.a. Sequence.

4. Damper Control

Automatic motorized dampers are the actual valves the board controls to direct airflow. Fine motor control prevents overshoot that causes hot or cold spots. Well-sized and well-placed dampers keep the air from being choked and pressurized.

Closing a vent manually is not a substitute for a real damper and can lead to system issues.

5. System Protection

Boards have safeties so all dampers won’t close at once and overburden the blower. They observe defects and can prevent calls that threaten harm. A dedicated transformer maintains control circuits and prevents overloads.

They help extend HVAC life.

Zoning Advantages

Zoning lets HVAC enthusiasts exert targeted influence on the distribution of heated or cooled air throughout a structure. It clusters spaces into zones having their own thermostats or sensors, and a zone control board actuates dampers or variable-speed equipment to meet demand. The primary advantages are enhanced comfort, reduced energy consumption, and reduced equipment strain, particularly in multi-level homes, open floor plans, or rooms with oversized windows that heat or cool unevenly.

Comfort

Zoning eliminates hot and cold spots by dispatching conditioned air solely where it’s required. Separate thermostats allow each individual to control the temperatures in bedrooms, living areas, sunrooms, or home offices. Families with mixed preferences find this useful: one person can keep a bedroom cooler at night while living areas stay warmer during the day.

Zoning benefits. Sensors and thermostats in each zone give precise feedback so the system maintains target temperatures without overexerting.

Efficiency

Zoning minimizes overall energy consumption by conditioning only occupied spaces, which, if well-designed and installed, can reduce energy costs by as much as 30%. Better duct layout and tighter ducts help because reduced leakage keeps conditioned air where it belongs.

The system controller sequences dampers and equipment so heating and cooling run only as needed. This reduces run times and lost cycles. Both reviews and field reports often cite significant efficiency improvements after retrofitting zoning, especially in homes with high ceilings, sprawling floor plans, or rooms that experience wide temperature swings.

Longevity

Zoning reduces strain on your furnace, AC, and air handler by decreasing short cycling and maintaining balanced airflow throughout the system. A more stable load results in fewer stress spikes on compressors and motors, helping components last longer.

For zoning convenience, most zone control boards offer protection features, such as lockouts, minimum run timers, and diagnostic outputs that avoid damaging short cycling and notify of problems promptly.

Monitor runtime and service records to measure lifespan benefits. Modest reductions in start and stop cycles and operating hours translate into actual savings in replacement costs.

Practical Realities

Zone control boards connect several thermostats, motorized dampers, and a central control panel together into a synchronized system. They allow you to reduce energy consumption by conditioning only the spaces in use, enhance comfort by controlling temperatures room or floor by floor, and can extend the life of the HVAC by reducing run time in unoccupied zones.

Before diving into details, remember that real-world performance is a function of duct layout, equipment condition, and proper installation.

Installation

Checklist of installation requirements and best practices:

• Inspect and map existing duct runs and register locations.

• Practical Realities – Duct Size and Static Pressure – Measure duct size and static pressure to select the appropriate damper size.

• Make sure you have access to the air handler and room for the zone control board.

• Map out low-voltage wiring for multiple thermostats to the control panel.

• Check transformer capacity and add or upgrade if needed.

• Try system operation in manual and automatic modes after installation.

Proper duct sealing and damper sizing are essential. Leaky ducts or undersized dampers can cause pressure imbalance, noise, and reduced airflow to occupied spaces. Proper sealing with mastic or foil tape and right-sized dampers per manufacturer specs keeps air balanced and efficient.

Installation may require electrical updates, including a larger transformer, extra 24 V wiring, or new thermostat wiring. Professional HVAC contractors are suggested. They can measure static pressure, choose compatible controls, and install staging or compressor protections.

Cost

Factors that influence cost:

• Home size (square meters) and layout complexity.

• Number of zones and thermostats.

• Quality and brand of the control board and dampers.

• Need for duct repairs, sealing, or access work.

• Electrical upgrades or additional wiring labor.

• Local labor rates and permit costs.

Compare to alternatives: Ductless mini-split systems cost more per zone up front but avoid ductwork. Window units are inexpensive at first but are not integrated or efficient.

Zoning may have a greater upfront cost than a one-thermostat solution, but energy savings and comfort improvements over time can amortize the upfront investment. Homes with lots of empty rooms, higher ceilings or oversized windows tend to experience faster payback as zoning cuts back on wasted conditioning.

Compatibility

Nearly all split systems, heat pumps and forced-air furnaces can be zoned, but whether yours can depends on your equipment controls and ductwork layout. Previous generation panels may require a staging control or relay to integrate with a zone control board.

First, see if your current thermostats use traditional 24 V wiring or are wireless. Wireless might require adapters. For common residential brands (Trane, Carrier, Lennox, Rheem, Goodman), there are compatible zoning add-ons available, but models differ in support and features.

Check with your HVAC contractor and equipment manuals before buying to make sure your current setup supports a zone control upgrade.

System Synergy

System synergy explains how the zone control board, thermostats, sensors, dampers, and primary HVAC equipment work together to satisfy defined comfort targets. When these parts work in concert, the whole system often performs better than each piece would alone, leading to improved energy use, more stable temperatures, and fewer short cycling events.

To do that takes design, correct wiring, compatible parts, and tuning so signals, power, and control logic fit. A basic sketch of zones, dampers, the control board, thermostats, and air handler helps illuminate the connections and illustrates where upgrades or additional wiring might be required.

Thermostats

Zone thermostats send requests for temperature to the control board, indicating when a zone needs heat or cooling. Programmable or smart thermostats offer schedules, setback and hold features, and can reduce runtime by aligning HVAC output to true need.

Individual thermostats allow users to adjust set points for each zone, which minimizes waste when rooms are unoccupied. Others allow for remote access, meaning you can adjust settings through apps like American Standard Home, which allows you to see zone status, adjust schedules, and get alerts.

Smart Homes

• Occupancy sensing and adaptive scheduling based on presence

• Voice control via assistants like Alexa or Google Assistant

• Geofencing to adjust zones when residents arrive or leave

• Energy reporting and runtime optimization dashboards

• Automation rules connect window sensors, shades, or humidity controls.

Intelligent zoning systems can learn occupancy patterns and adjust schedules to align with habits, which increases comfort while reducing energy consumption. For added convenience, it is compatible with voice assistants and automation routines for hands-free control.

List smart home features to plan integrations and to ensure the zone control board supports the protocols.

HVAC Equipment

Certain zoning systems are compatible only with certain brands or models that provide accessible control signals. Blower motor, staging logic, or controls upgrades may be needed to get the full benefit of zoning.

Check transformer capacity and wire gauge before installing thermostats, dampers, or smart modules. Not enough power or the wrong gauge can break communication and disrupt synergy. Mismatch parts or bad wiring get in the way of system synergy and cause more issues than they resolve.

Common Malfunctions

Zone control systems rely on coordinated parts: the control board, thermostats, sensors, dampers, and the HVAC unit. They fail when one part ceases to distribute correct signals or the power to the device is cut. Routine inspections cut breakdowns and assist in detecting minor defects before they expand.

Zone Issues

Temperature swings between rooms, a thermostat that refuses to call for heat or cooling, or zones that never reach setpoint are typical symptoms. These symptoms usually lead initially to sensor or communication glitches as opposed to imminent equipment failure.

Airflow restrictions will present themselves as weak zone heating or cooling. Faulty dampers that stick or poorly sized or routed ductwork upset this balance and create hot or cold spots. A room that heats but won’t cool is usually a damper or duct design problem, not the central unit.

Zone temperature sensors can drift or just die, providing incorrect reports which cause the board to keep a damper closed or open. Check sensor wiring and output where possible. Basic resistance or voltage tests frequently expose the issue.

Check the control panel for indicator lights or caution messages. Typical Malfunctions While contemporary units employ LED signaling to indicate problems, one flash may signify thermostat or connection trouble, two flashes can denote igniter fires, continuous blinking indicates a variety of component failures, and no blinks means the control board is kaput. Check the manual for precise definitions.

Board Errors

Typical board faults include blown fuses, tripped breakers, or loss of 24 V transformer power. They’re quick to inspect and explain a good number of those no-heat/no-cool service calls. Go after power and fuses first, then do the deeper work.

Zone panel indicator LEDs aid troubleshooting. Patterns need to be interpreted in conjunction with the manufacturer manual. Quick resets can clear a momentary glitch but seldom repair underlying wiring or part damage. Reset sparingly and monitor.

Bad wiring, loose connectors, or incompatible expansion modules frequently cause errors that appear to be board malfunction. Check wiring with the schematic. If a code displays, check the manual. Many boards enumerate code meanings and recommended actions.

If troubleshooting hints to the board, attempt a controlled reset and double-check power. Stubborn malfunctions or no LEDs usually require professional diagnosis or board replacement.

Damper Failures

Damper problems are indicated by zones that are stuck open or closed, rooms that bounce around suddenly, or loud grinding when dampers attempt to shift. Noisy operation usually indicates worn gears or loose linkages.

Motorized dampers wear over years of use, and humidity can reduce lifespan. Damper position feedback, a sensor or switch that reports open or closed, aids in quickly pinpointing the faulty unit.

Inspect ducts for debris, sagging insulation, or items that obstruct damper blades. Minor blockages can halt motion and confuse the control board.

The Human Element

Zoning systems live in the overlap between the hardware and the human. A zone control board HVAC system only works as well as the humans who configure and operate it. Users’ habits, preferences, and understanding shape real-world results: temperature targets, schedule choices, how often they override automatic settings, and whether they maintain sensors and thermostats.

The system has to factor in a broad spread of comfort. Some occupants are good at 20°C while others desire 24°C. It must consider factors beyond just air temperature, such as humidity, air quality, clothing, age, and activity level.

Comfort Psychology

Comfort is very subjective. Two people in the room can report different comfort at the same reading because of metabolism, health, or apparel. Zoning allows each zone to maintain a different set point so active rooms can be cooler than rest rooms.

Letting individuals have control over a local thermostat empowers them and curtails grumbling, which counts in residences and multi-tenant buildings. Follow your satisfaction with mini-surveys or straightforward logs after adjustments. That information assists in adjusting set points and rhythms and demonstrates if a zone addressed the actual irritation or only shifted it.

Future-Proofing

Select a zone control board that has room to expand. Modular designs allow an owner to add zones or swap in newer thermostats without rewiring the entire system. Try to find support for common smart protocols so that the system can connect to home platforms down the road.

Opt for brands with obvious upgrade paths and solid post-sale support. Reviews by other users will frequently indicate how long firmware and parts stick around. Make a checklist of future-ready features: open APIs, extra inputs for humidity or CO2, and spare relay capacity to add fans or dampers.

Data Insights

Sensors and usage logs are a hidden treasure. Temperature sensors, runtime reports and damper positions reveal how zones act during the day and where comfort or waste emerge. Advanced controllers provide analytics on energy consumption, comfort patterns, and fault flags.

That data enables installers and owners to optimize schedules, rebalance airflow, or detect failing components before they break. Hook the data to smart-home platforms to automate easy fixes, such as nudging temperature one degree when occupancy dips.

Establish reports weekly or monthly to benchmark energy utilization against comfort and to steer incremental modifications that accumulate.

Conclusion

A zone control board connects dampers, thermostats, and the HVAC unit into one intelligent system. It eliminates energy waste by conditioning only the spaces that need it. It maintains comfort consistency in homes with mixed sun, shade, and room usage. It can reduce bills, reduce strain on the main unit, and increase responsiveness to temperature changes.

Anticipate compromises. Price, floorplan restrictions, and maintenance requirements count. Select a board that offers transparent wiring, straightforward status LEDs, and supports the damper and thermostat models you have. Tell a tech to check airflow and load before you buy.

Need assistance selecting a model or verifying your system’s compatibility? Contact me and I’ll help figure out the choices.

Frequently Asked Questions

What is a zone control board in an HVAC system?

A zone control board is the brain that controls all your thermostats and dampers. It determines which zones receive heating or cooling and when. It orchestrates signals to the HVAC equipment to provide precision comfort and energy efficiency.

How does a zone control board improve comfort?

It allows various rooms to maintain different temperatures at the same time. The board opens and closes dampers and runs for zones only if occupied. That minimizes hot and cold spots and provides more consistent comfort.

Can I add a zone control board to an existing system?

Frequently yes. Most boards retrofit to standard furnaces, air handlers and heat pumps. Compatibility varies based on equipment, wiring and control signals available. A trained HVAC tech can verify fit and install safely.

Does a zone control board save energy?

Yes. By conditioning just occupied zones, the system runs less overall. Savings are different for every home layout, use patterns, and insulation, but targeted control generally reduces energy waste and reduces bills.

What common problems occur with zone control boards?

Common failures are wiring, stuck dampers, thermostats, and bad relays. Symptoms include inconsistent zone temperatures, system short cycling, or zones that do not respond. Troubleshooting begins with wiring and component tests.

How do zone control boards work with smart thermostats?

While many zone boards accommodate traditional relay-style smart thermostats. Integration differs, so verify compatibility for power, control type, and communication protocol. The right setup keeps smart features intact while freeing you from the pain of zoning.

When should I contact a professional about zoning issues?

Call a licensed HVAC technician if more than one zone exhibits poor control, if dampers fail to move, or if the system cycles abnormally. Experts troubleshoot control board failure, wiring, and mechanical damper issues with precision and safety.
