Key Takeaways

• HVAC zoning systems use separate thermostats and motorized dampers to control temperatures in different areas. This allows for personalized comfort and efficient climate management.

• Central control panels serve as the system’s nerve center, managing zone activity, integrating with smart home platforms, and facilitating convenient user controls.

• Zoning combats temperature inconsistencies in multi-level houses and sprawling floor plans by reducing hot and cold spots while making the system more efficient.

• Zoned heating and cooling in these zones can reduce energy consumption, decrease utility bills, and increase the longevity of HVAC equipment.

• Smart thermostats and sensors can further optimize comfort and savings through real-time adjustments and remote monitoring.

• With proper installation by experienced professionals and integration with smart technologies, you can maximize the benefits of an HVAC zoning system.

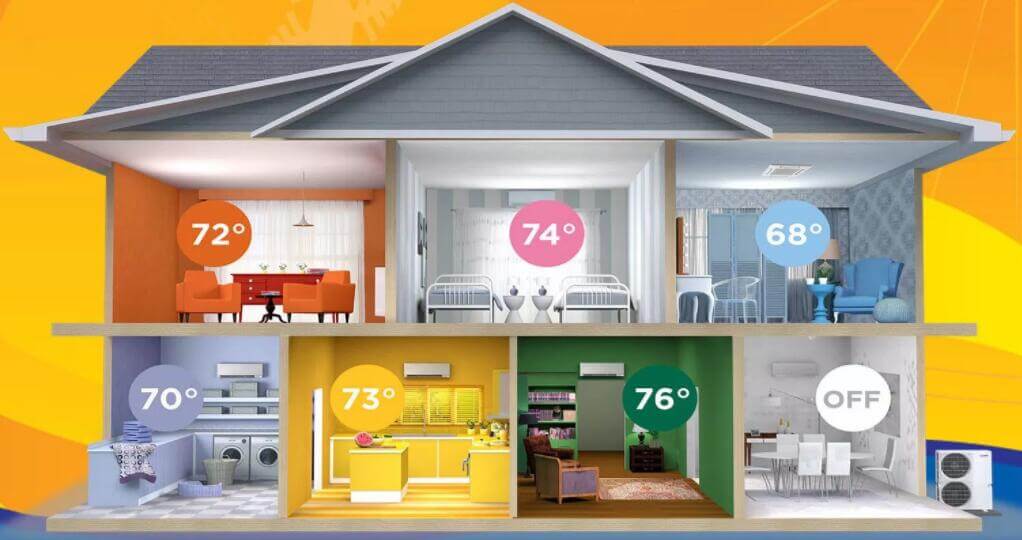

An HVAC zoning system is a configuration that divides a structure into zones, each with independent temperature control. This helps maintain rooms at varying comfort levels and can reduce energy consumption.

By delivering air exactly where it’s needed, zoning systems can reduce expense and prevent hot or cold areas. Many homes and offices utilize zoning to accommodate individual or work needs.

Below, the post details how these systems operate.

System Mechanics

HVAC zoning separates a building into individual zones. This allows occupants to condition only the rooms they use and leave others as-is, making comfort personal and energy efficient. At the heart of the mechanics are a handful of major elements collaborating.

1. Control Panel: This is the central hub, or brain, of the system. It controls the commands between thermostats and dampers, opening or closing each damper as needed for each zone. Most homes have a zoning panel with a maximum of four zones, but some can have more. Control panels now typically feature intuitive touch screens or app interfaces where it is easy to view what zones are running or to schedule times.

Several panels can pair with other smart home devices, allowing adjustments to be made remotely or automatically triggered based on occupancy. If a room is not being used, it allows the control panel to tell the system to stop conditioning it, which reduces energy waste.

2. Thermostats: Unlike standard HVAC systems with a single thermostat, zoned systems use one for each zone. This configuration allows every space, such as a bedroom, kitchen, or office, to be set to its own desired temperature. Smart or programmable thermostats provide flexible scheduling and can be adjusted from a phone or tablet.

Placement is important. If a thermostat rests near a draft or direct sun, it will feed false signals to the system. A few advanced thermostats employ additional sensors that monitor real-time temperature variations, aiding the system in quicker adjustments and maintaining rooms at the desired temperature. This fine control comes in handy during extreme weather or when you’re working in a building with rooms facing multiple directions.

3. Dampers: Motorized dampers sit inside the air ducts and act like valves, opening or closing to let more or less air into each zone. Damper design has an impact on airflow efficiency from simple blade dampers to sophisticated models for larger spaces. Dampers should be checked periodically to make sure they don’t become blocked or stick, as broken dampers can cause inefficient airflow and noisy ducts.

Closing vents in unoccupied rooms is another energy saver, but this only functions properly if the dampers are built to deal with variations in air pressure. Improper installation can result in high static pressure, which threatens damage or additional noise.

4. The Process: Zoned HVAC systems work by only conditioning the air in rooms that need it, which lowers energy use and bills. It allows folks to maintain cooler bedrooms at night or warmer living spaces during the day. By not running full blast all the time, the primary HVAC equipment breaks down less, enabling it to last longer, typically 10 to 20 years with maintenance.

Flexibility for unique comfort needs — Users can set different temperatures for each zone. Just about any system these days can be equipped with zoning, and even ductless configurations, where a single outdoor unit connects to multiple indoor heads, can provide the same advantages.

Zoning Benefits

Zoning advantages Zoning systems divide a house into distinct areas, all with their own temperature control. That way, every zone can be set to a different level, depending on what’s required. Controlling comfort in a house with zoning becomes much simpler, particularly for those in larger homes, multi-level floor plans, or homes with huge, open rooms.

In multi-story homes, zoning addresses the frequent issue of temperature swings from floor to floor. For instance, the upstairs rooms may become overly hot in the summer while the downstairs areas remain cool. In the winter, heat rises, so the upper floor is cozy, but your ground-level bedrooms are freezing. Zoning allows every floor to have its own thermostat, so every space can be set perfectly.

This comes in handy in homes where the floor plan causes heat and cool air to not distribute evenly. For families with bedrooms on multiple levels, it is simple to maintain sleeping spaces cozy for all. Sprawling homes with hallways or wide-open living rooms or additions like sunrooms tend to fight hot and cold spots. Zoning can be aimed at these spaces.

For instance, a sunroom with many windows gets hot quickly, while a distant guest room remains cool. Zoning Benefits: When you zone your home, you’re splitting it into zones where each zone receives just the right amount of heating or cooling. High ceilings or open concepts can make air movement tricky, but zoning handles this by delivering air only where it is needed most.

Rooms or spaces that aren’t used a lot, such as storage rooms or guest suites, shouldn’t be heated or cooled to the same extent as your main living areas. Zoning allows you to turn down the heat or air conditioning in those spots, reducing energy waste. Research indicates that zoning can reduce energy consumption by up to 20.5 percent over single-thermostat homes.

In the long run, this translates to reduced energy bills and an HVAC system that is less stressed. Individual temperature preferences vary. One individual may prefer a cool bedroom at night, whereas another desires the living room cozy in the evening. Zoning benefits these needs by allowing all of you to select the comfort level that suits you the best, with room temperature control so no one has to compromise to a single setting for the entire house.

Being zoned is a flexible way to tailor comfort to actual needs. Zoning ensures a comfortable ambiance in the room you care about anytime.

Ideal Scenarios

HVAC zoning systems really show their stuff in environments where temperature regulation is difficult. Multi-level homes, expansive open floor plans, and rooms with special comfort requirements tend to run hot or cold. Zoning addresses these problems by allowing homeowners to regulate the temperature in separate zones.

Multi-Story Homes

Zoning systems address the age-old issue of hot and cold floors in multistory homes. Warm air rises, so upper levels tend to get way hotter, while basement and ground floors remain cooler. Zoning allows you to divide the house into zones, usually by floor, where each zone has its own thermostat and damper system.

In the case of an ideal scenario, let’s say a family with bedrooms upstairs and living areas below, it can keep sleeping areas cooler at night without overcooling the rest of the house. South-facing rooms or attic spaces that become too hot in the summer enjoy the benefits of individual zone control.

Zoning may reduce energy waste by allowing you to heat or cool only the floors in use, particularly in homes with finished basements or rooms above garages. Design-wise, HVAC techs take into account window orientation, ceiling height, and sun exposure when establishing zones, ensuring each zone receives appropriate airflow. Properly designed zoning in large homes increases comfort and saves energy.

Sprawling Layouts

In wide open floor plans or homes with wings, you may not use every room on a daily basis. Zoning helps homeowners not waste energy on empty rooms, giving them the ability to setback temperatures in unoccupied zones. It’s handy for guest rooms, formal dining rooms, or storage rooms that do not need to be heated or cooled 24/7.

Let your smart sensors and programmable thermostat take care of the climate in the moment, maintaining comfort where you spend the most time and saving where you don’t. Zoning helps to prevent the cold or hot spots that can sometimes be found at the far ends of a home.

For example, a sunroom with floor-to-ceiling windows might warm up fast, while an interior hallway remains cool. Zoning with smart tech keeps each room in the spotlight and temperature swings out of the picture.

Unused Rooms

HVAC zoning systems provide adaptability for shifting needs. Homeowners can tweak settings for rooms they only use some of the time, such as a home office or gym. There is less wasted effort on rooms that lie dormant for hours.

Smart thermostats learn your routine and only adjust the temperature when you’re home. Over time, this keeps bills lower and comfort higher. Zoning prevents storage or attic areas from getting excessively hot or cold, which safeguards possessions and conserves energy.

Personal Preferences

With zoning, you can customize the temperature for different members of the household. Everyone gets to select the temperature that works best for them, which will keep those thermostat battles at bay.

Smart thermostats take this customization to the next level by allowing users to set schedules for weekdays, weekends, or times of day. This comes in handy in households with differing schedules or fluctuating seasonal needs.

It can learn new preferences as time goes on and would therefore be a malleable solution for families and roommates.

Installation Realities

Zoning HVAC is neither easy nor fast to add. It requires precise planning, artisans, and the correct components. One of the big things is getting a zone panel installed. Some systems even require a pair. The panel functions as the system’s brain. It connects to room thermostats and motorized dampers. It tells the dampers when to open or close so each zone receives the correct airflow.

If the panel isn’t installed right, the entire system can perform poorly or not at all. Not enough air movement can cause high static pressure. That translates to more noise, more strain on the blower, and potential damage to the HVAC unit.

The install time for an HVAC zoning system is not minimal. Even a polished crew can work half a day or longer on site. If you have a home or building with simple ductwork, you could anticipate a speedier job. If there’s no ductwork or if the system is big, it takes longer. Costs increase.

For a ductless location, rates begin at $5,000 and go up to $8,500. Existing ductwork for zoning but no zoning system costs typically range from $4,500 to $7,000. For large homes or structures with three or more zones, pricing begins at $8,500. Here are install realities: post main install you may need additional fixes or tweaks.

These can add anywhere from $500 to $2,500 to your final bill. All prices are approximate and will vary based on the number of zones, layout, and what type of controls you desire.

Smart home tech now plays a big part in zoning systems. Smart thermostats and controls allow you to adjust or override the temperature in each zone from your smartphone or tablet. This means you can control it from a distance, not just while you’re sitting on the couch. Remote control is a big help for busy families or folks on the go.

It allows you to view energy consumption in real time, which can aid you in identifying waste and reducing bills. Sensors and automation introduce an additional dimension to zoning. A lot of zoning systems are already using sensors in every zone to see if the zone is warm or cold or if anyone is actually in the room.

With these, the system can automatically adjust airflow or temperature. If a room is empty, the system can cut airflow to save energy. If the sun warms just one side of the house, sensors detect this and target cooling to those rooms. This evens out comfort and reduces wasted energy.

Smart HVAC tech gives live data, not just to users but to servicing teams as well. You can monitor energy consumption by each zone, identify abnormal patterns, or detect issues before they escalate. This assists users in making smarter decisions, such as when to operate the system or which zones to prioritize.

For service teams, it translates into fewer surprises and quicker repairs.

Smart Integration

Smart integration for HVAC zoning systems enables every room of a home to have its own temperature control. The way this setup works is that it divides the property into zones with a separate thermostat and motorized dampers in the ductwork. The main benefit is clear: people get more comfort while using less energy.

For instance, cooling only the bedrooms at night or heating the living space during the day means the system doesn’t need to run at full power for the entire home. This focused application can assist in eliminating hot and cold spots, which plague single-zone systems. Zoning often releases the horsepower your HVAC system already has, which can reduce monthly utility bills by 20 percent to 35 percent based on usage and house layout.

It’s good for the environment. Smart zoning, in addition to using less energy, reduces a household’s carbon footprint. Heating and cooling make up a significant portion of energy consumption worldwide, and savings in this area contribute to decreased greenhouse gas emissions.

With a smart zoning system, the heating or air-conditioning runs only when and where it is needed, leading to less waste and lower emissions. For families wanting to reduce their footprint on the planet, smart integration is an accessible move that fits into just about any lifestyle, regardless of location.

Convenience is yet another reason smart zoning systems are favored. Each zone could be set to a different temperature, meaning everyone in the home could pick the setting they preferred. For example, you can have one person keep their room cooler while someone else keeps it warmer.

This flexibility is handy for houses with mixed schedules or room usage, such as a home office, gym, or nursery. It addresses the problem of hot or cold spots, making the entire space more comfortable.

Installing smart zoning can really add value to a property. Buyers like to see all the modern, energy-saving bells and whistles, and a zoned HVAC system is considered a savvy upgrade. The cost to install smart integration can vary.

A single-zone system may run from $3,700 to $6,000, while a dual-zone system costs about $5,500 to $9,000, and multi-zone systems start at $8,500. While these figures might seem lofty, the energy savings across years can make up for the initial expense.

You need to work with an experienced installer. Mistakes can cause high static pressure, noise or even equipment damage. To maximize the benefits of a system, smart design should be tailored to the home’s layout, existing HVAC configuration and living habits.

The Unseen Impact

HVAC zoning systems are the behind-the-scenes workhorses that address issues most don’t even realize they have. They divide a house or building into zones, and each zone gets its own temperature control. This configuration provides a solution for numerous challenges found in homes, such as hot or cold zones, and simplifies life for residents in every type of household.

In homes with high ceilings, big windows or patchy sun, some rooms can get significantly warmer or colder than others. Zoning works to offset these variations so one room isn’t like a freezer while another is like an oven. This is particularly the case with two-story homes or homes with wings where the ‘top’ floor is perpetually ‘too hot’ and the lower ones ‘too cold’.

A zoning system provides greater control for each individual area of the home, allowing you to adjust temperatures based on how the space is used. For instance, you can make a kitchen cooler during meal prep or keep a bedroom warmer at night. This saves energy since it prevents the system from trying to heat or cool the entire house when only a few rooms require it.

The numbers show real benefits: with a good zoning system, many homeowners save between 20 percent and 35 percent on yearly energy costs. Savings occur only when the system is properly configured. If the system is not planned or installed well, energy consumption can rise by 25 percent to 40 percent and any savings are eliminated.

Establishing a zoning system isn’t always easy. Sometimes you can use the existing ductwork, but in other homes you may have to install new ducts, which increases the cost. A zoning panel, which controls the various zones, is required for multi-zone systems and this contributes to cost as well.

Even though they’re expensive, these installations are meant to be permanent, with many operating for 10 to 20 years with proper maintenance. This makes them a powerful option for those seeking a method to control comfort and save dollars in the long run.

Conclusion

HVAC zoning divides a house or office into designated zones. Each zone can maintain a designated temperature. This configuration reduces waste and is capable of reducing your bills. It does a good job increasing comfort since it allows people to choose what works for them. Smart systems make this easier and more controllable. Zoning works great for large homes, multi-story homes, and unused rooms. Upgrades require a little effort and commitment, but the majority view the benefits quickly. For more info or to see if zoning is right for your place, consult a local HVAC technician. Discover your own optimal zone. With the proper configuration, day-to-day life runs smoothly and expenses fall.

Frequently Asked Questions

What is an HVAC zoning system?

An HVAC zoning system separates a building into zones or rooms, which each have their own temperature controls. This enables more targeted comfort and energy efficiency.

How does HVAC zoning help save energy?

By heating or cooling only the spaces that are occupied, it avoids wasting energy. This specific targeting has the potential to reduce utility costs and promote eco-friendliness.

Who benefits most from HVAC zoning?

Multi-level homes, great rooms, and sun-exposed areas get the most benefit. Zoning is perfect for rooms where temperature preferences vary during the course of the day.

Is HVAC zoning expensive to install?

Installation fees vary by building size and system complexity. The upfront cost can be greater, but the energy savings over time tend to make up for it.

Can HVAC zoning work with smart home systems?

Yep, a lot of modern zoning systems work well with smart thermostats and home automation. This allows for remote control and more complex scheduling for increased convenience.

Are there any maintenance concerns with HVAC zoning?

Be sure to keep up with maintenance, as it is important that your dampers and controls work properly. Regular professional servicing can help prevent problems and extend system life.

Does HVAC zoning improve indoor air quality?

While zoning doesn’t directly purify air, it can help maintain consistent temperatures and humidity that contribute to comfort and wellness.
